Fusion Floor® for dry van trailers
Save on Maintenance Costs
Increase Productivity
Haul Heavier Loads

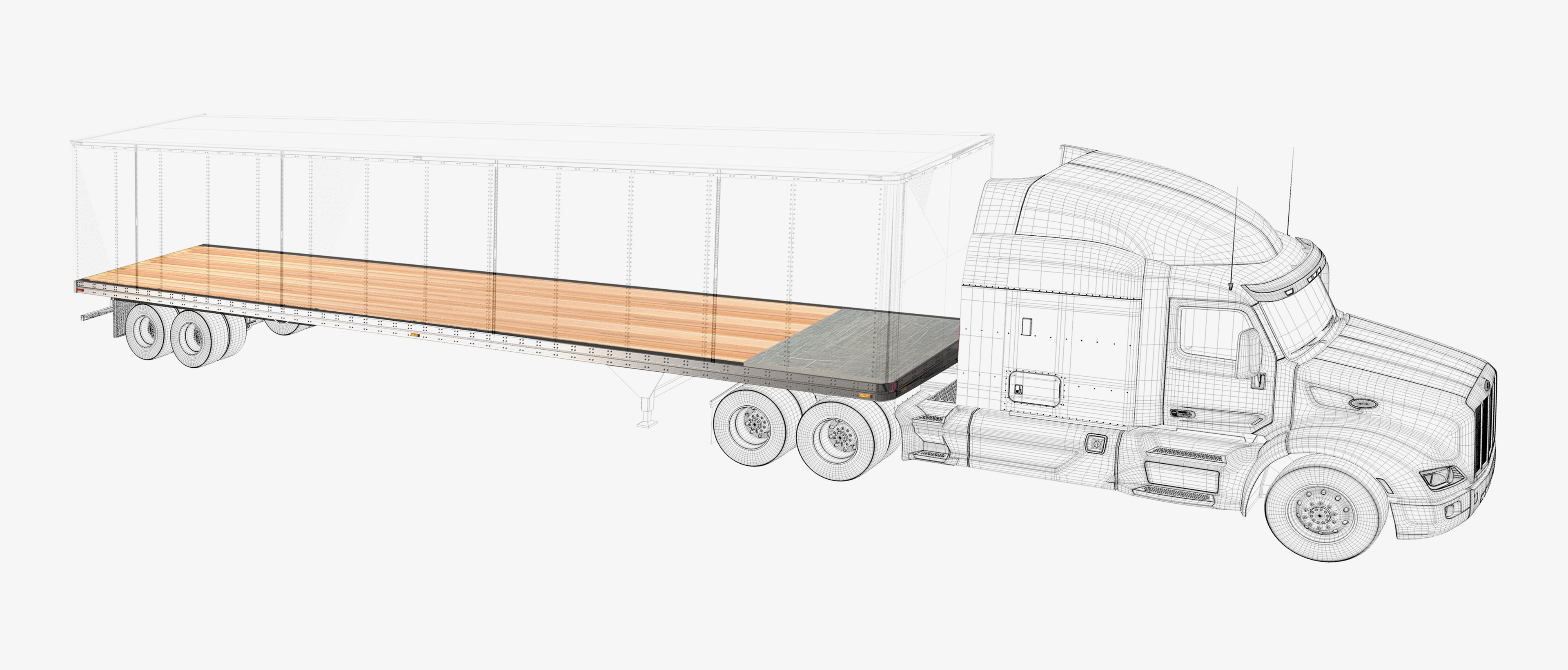

Proven Dry Van Trailer Flooring
For over 20 years, Fusion Floor has led the transport industry with its legendary strength, longevity and ROI.
Every layer features superior engineering that delivers PROVEN results. Fusion Floor is the longest-lasting and most superior composite flooring in the dry van trailer industry. Invest in the floor with a proven track record.
See for yourself. Request a Fusion Floor sample or download the brochure for more information.
Nominal Floor Load Ratings and Weight Savings*
| Floor type | Thickness | Crossmember spacing | Nominal load rating | Unit weight (lb/sq ft) | Trailer weight savings |
|---|---|---|---|---|---|
| Laminated Oak | 1 5/16" | 12" | 18,000 lbs | 5.1 | – |
| Fusion Floor | 1 1/16" | 12" | 18,000 lbs | 4.5 | 228 lbs. |
| Laminated Oak | 1 3/8" | 12" | 20,000 lbs | 5.35 | – |
| Fusion Floor | 1 1/8" | 12" | 20,000 lbs | 4.75 | 228 lbs. |
| Laminated Oak | 1 1/2" | 12" | 22,000 lbs | 5.85 | – |
| Fusion Floor | 1 3/16" | 12" | 22,000 lbs | 5.0 | 323 lbs. |
| Laminated Oak | 1 1/2" | 10" | 24,000 lbs | 5.85 | – |
| Fusion Floor | 1 1/4" | 12" | 24,000 lbs | 5.25 | 552 lbs. |
See it in action.
Watch the video to learn all about the benefits of Fusion Floor for dry van trailers.
Proven Weight Savings
Fusion Floor can save up to 360 pounds per trailer. Reducing overall trailer weight can provide several advantages, such as increasing payload and fuel efficiency.
Proven Strength
Composite Layer With Increased Rigidity
Fusion Floor uses a higher fiber content and a high-grade epoxy resin to create the strongest composite layer in the industry.
Superior Bond Between LayersTwo layers of our signature red PUR adhesive create an unbreakable bond between the wood and epoxy composite layers.
Strong Oak FoundationNot all hardwoodare created equal. Oak is the strongest — Havco® uses 100% oak in its floors.
See the superior strength that awaits your trailer fleet.
Through a precision bending strength test, we compared the Fusion Floor side-by-side with a traditional floor, showing the applied load and deflection rate for both floors.
Unmatched Trailer Truck Flooring
Fewer Crossmembers
Fusion Floor systems are load rated up to 24,000 lbs. at 12-inch crossmember span, and some designs are rated even higher than 28,000 lbs.
Designed To Last
The numbers behind the proof: We have sold over 300,000 Fusion Floor kits for new trailers over the last 20+ years.
Handles the Heaviest Loads
Fusion Floor overwhelmingly passed every Truck Trailer Manufacturer’s Association (TTMA) Fatigue (load cycle) Test and consistently exceeded the stringent soak/dry test requirements set by Havco.
Custom Coatings for Added Protection
Extend the service life of your floor with a protective coating from Havco. Our exclusive floor treatments are formulated for maximum protection and durability.
FREE Fusion Floor Samples
When it comes to investing in your trailer fleet, we know how important it is to inspect materials firsthand. We’re proud to offer samples of Fusion Floor so you can see how trailers, truck bodies and containers benefit from our superior composite flooring.
Fusion Floor is for use in dry van trailers, truck bodies and intermodal domestic containers only and not for residential homes, office buildings or warehouses.
